Linear Motor Fiber Laser Cutting Machine For 2mm Brass Cutting 1500w

Linear Motor Fiber Laser Cutting Machine

For 2mm Brass Cutting 1500w

CKD-1390 fiber laser cutting machine is mainly for high-speed and high-precision processing of thin metal plate. With mature technology, the whole machine runs stable and is of good cutting efficiency. Since the floor space is about 1850*1400mm, so it is very suitable for a small metal processing factory. What’s more, compared with the traditional machine bed, its high cutting efficiency increased 20%, and it is suitable for cutting all kinds of metal materials.

Machine Technical Parameters

Machine Applications

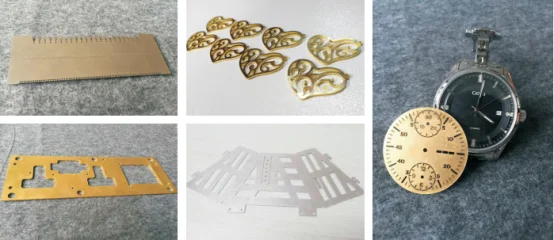

The machine is used to cut various sheet metal, mainly for stainless steel, carbon steel, manganese steel, copper, aluminum, galvanized sheet, all kinds of alloy plates, rare metals, and other materials.

Application industries: sheet metal, jewelry, glasses, machinery and equipment, lighting, kitchenware, mobile, digital products, electronic components, watches and clocks, computer components, instrumentation, precision instruments, metal molds, car parts, craft gifts, and other industries.

Machine Advantages

·The machine base adopts marble and the cross beam uses extruded aluminum, so the machine mainframe is of good rigidity, high strength, and good acceleration, thus effectively prevent the machine structural deformation.

·US AheadTech laser cutting CNC system;

·Full closed-loop feedback, grating ruler ensures processing precision;

·EtherCAT bus signal transmission greatly enhanced the machine flexibility and scalability, so it is easy to interconnect with other machines.

MachineComponents

Cutting Control System
1 . Advanced technical industrial computer , with professional fiber cutting control system , can cut metal tube and pipe well .
High cutting speed and perfect cutting edge , smooth plane and exquisite texture .
2 . Our engineers would save the metal cutting parameters of various technologies in the computer before delivering .

Laser Device
We applied famous brand laser device MAX/Raycus/IPG (optional ) . The laser device is in high technical and good stability which make the laser cutting in high performance and the good good cutting effect .

Laser Cutting Head
We applied with the famous brand laser cutting head.WSX/Raycus (optional) in good cutting effect and the performance
1 . Optimized design structure : modularization , easy maintenance , and reduced downtime .
2 . Multiple protective lenses : efficient protection of collimating focusing lenses.
3 . Durable and durable : 2-way optical water cooling , effectively extending continuous working time .

Servo Motor Drive
Y axis : Double sets , famous brand servo motors and drivers .
X axis : Famous brand Servo motor and driver
Our X Y axis structure increases machine speed and precision and more stable for machine working .
Z axis : Famous brand Servo motor and driver

Rack and Pinion Rail
The rack and the pinion rail is in high quality , connect with the machine to attach the materials cutting .
Make the machine in high stability and the high cutting efficieney .

Water Chiller
Automatically adjust the temperature according to different working environment, no need to change settings parameters.
Reduce the temperature of the laser source and the laser head through water circulation, protecting these two main parts.
